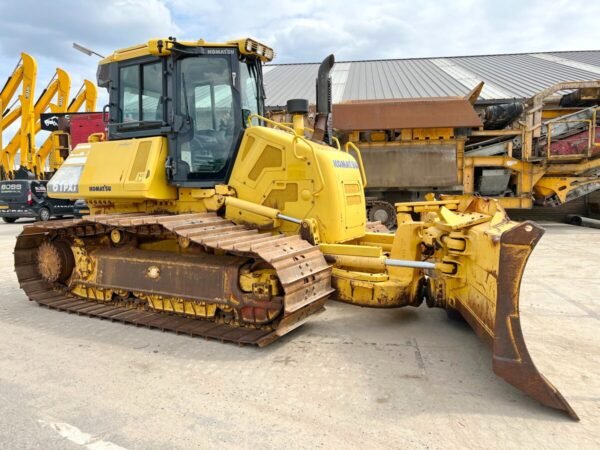

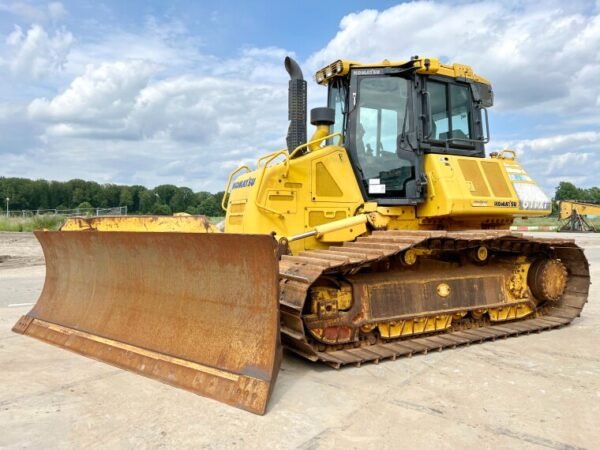

Komatsu D61PXi-24 Dozer for Sale – 2016 Model, CE/EPA Certified, Precision Hydrostatic Crawler

The Komatsu D61PXi-24 Dozer is a highly efficient hydrostatic crawler engineered for optimal performance in earthmoving, forestry, construction, and utility applications. This 2016 CE and EPA certified model features a robust 126 kW (168 HP) Komatsu SAA6D107E-3 diesel engine and balanced operating weight of 19,580 kg (D61PXi-24), making it ideal for demanding jobsites.

Advanced Engineering & Performance Komatsu D61PXi-24 Dozer for Sale

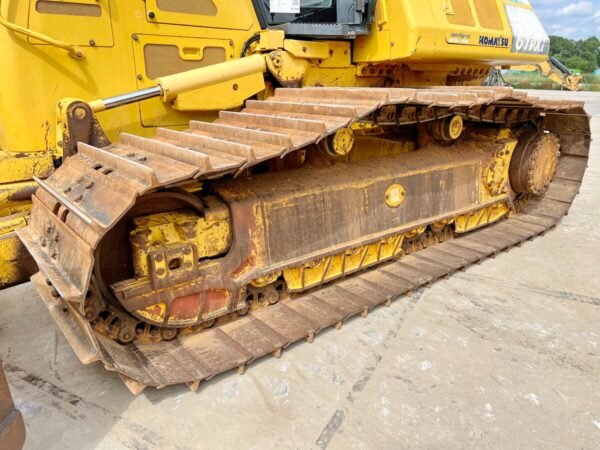

Equipped with a dual-path hydrostatic transmission (HST), the D61PXi-24 offers seamless speed control up to 9 km/h and responsive maneuverability. Integrated with the Parallel-Link Undercarriage System (PLUS), lubricated rotating bushings and mono-frame track roller construction deliver exceptional durability and reduced maintenance overhead. Ground pressure with standard 860 mm shoes stands at just 31.78 kPa (0.32 kg/cm² or 4.61 psi)—perfect for soft terrain and reduced soil disturbance .

Superior Operator Comfort & Control Komatsu D61PXi-24 Dozer for Sale

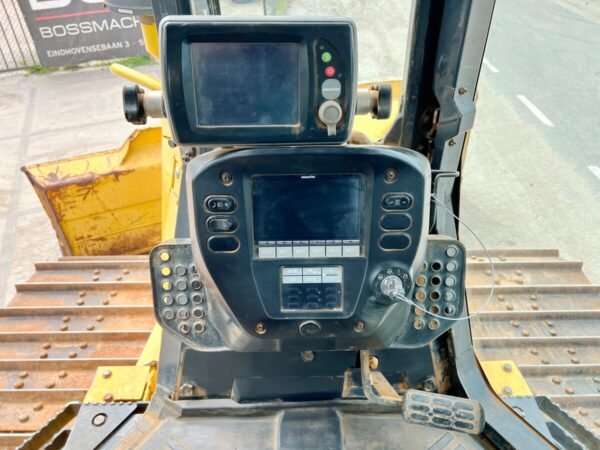

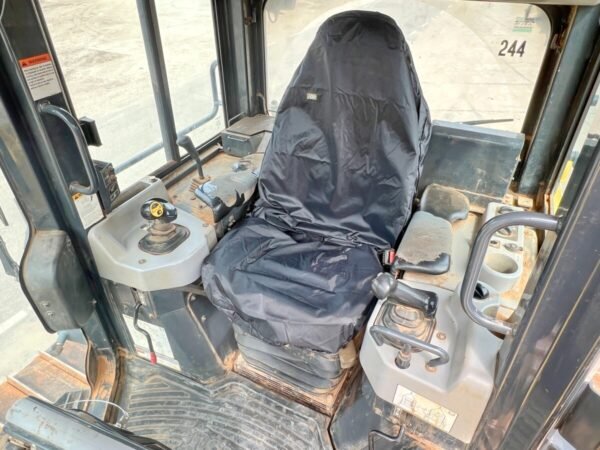

The operator environment features a reinforced, pressurized ROPS/FOPS cab with heated air-suspension seat, Bluetooth radio with AUX/USB, and LED worklights . Steering and directional control are simplified using the PCCS joystick, allowing seamless counter-rotation and intuitive speed management using multi-mode drive presets (P, E, Quick Shift, variable) .

Heavy-Duty Dozer Blade Performance Komatsu D61PXi-24 Dozer for Sale

This unit comes with a Power-Angle-Tilt (PAT) blade — adjustable pitch ensures material is moved with precision and efficiency. Blade specs include ~3.8 m³ capacity, 3.86 m width, 1.155 m height, lift up to 1.025 m, drop of 0.580 m, and tilt ~0.515 m . The super-slant nose design provides improved line-of-sight for optimized control and job efficiency.

Hydraulic System & Productivity Komatsu D61PXi-24 Dozer for Sale

The Closed-Center Load Sensing (CLSS) hydraulic system delivers precise simultaneous control with a max flow of ~171 L/min and relief pressure of ~280 kg/cm² (~3,974 psi). The control layout allows for raise, lower, float, angle left/right, tilt, and optional ripper operation.

Detailed Technical Specifications

Specification	Komatsu D61PXi-24
Year / Certification	2016 / CE & EPA
Engine	Komatsu SAA6D107E-3; 126 kW (168 HP)
Operating Weight	19,580 kg (43,167 lb)
Ground Pressure	31.78 kPa / 0.32 kg/cm² / 4.61 psi
Shoe Width	860 mm (34″)
Track Gauge	2,130 mm (7 ft)
Track Rollers	8 per side
Blade	PAT blade; 3.8 m³; 3.86 m × 1.155 m
Hydraulic	CLSS; 171 L/min; 280 kg/cm²
Travel Speed	0–9 km/h (via HST)
Refill Capacities	Fuel 372 L; Coolant 45 L; Oil 27 L; Hydraulic 101 L; AdBlue 20 L

Applications & Suitability

• Construction & Road Building – Grading, site prep, bulk earthmoving
• Forestry & Agriculture – Clearing, terracing, low-ground-pressure work
• Industrial Site Management – Paving prep, earth cutting, contouring

Why Buy from Buy Heavy Machines

• Fully Inspected CE / EPA certified units ready for work
• Transparent Pricing with no hidden fees
• Global Shipping managed logistics to your location
• Expert Support for parts, maintenance, and financing

Additional Resources

For an in-depth look at the Komatsu D61PXi-24, visit the Komatsu .

How to Order

Don’t miss out on this high-efficiency crawler dozer. Request a live demo, inspection, or quote today via our Contact Us page. Komatsu
